Sequence Diagrams for Testing

Sequence diagrams are well suited for the specification and testing of behavior. Here we will only focus on the testing part. To enable this feature, use the SD2Arc Tool.

MontiArc provides an integration for sequence diagrams. They look similar to UML sequence diagrams, only with some minor modifications.

In general, sequence diagrams are exemplary and describe one possible interaction of a system. For a detailed definition of sequence diagrams, read Modeling with UML.

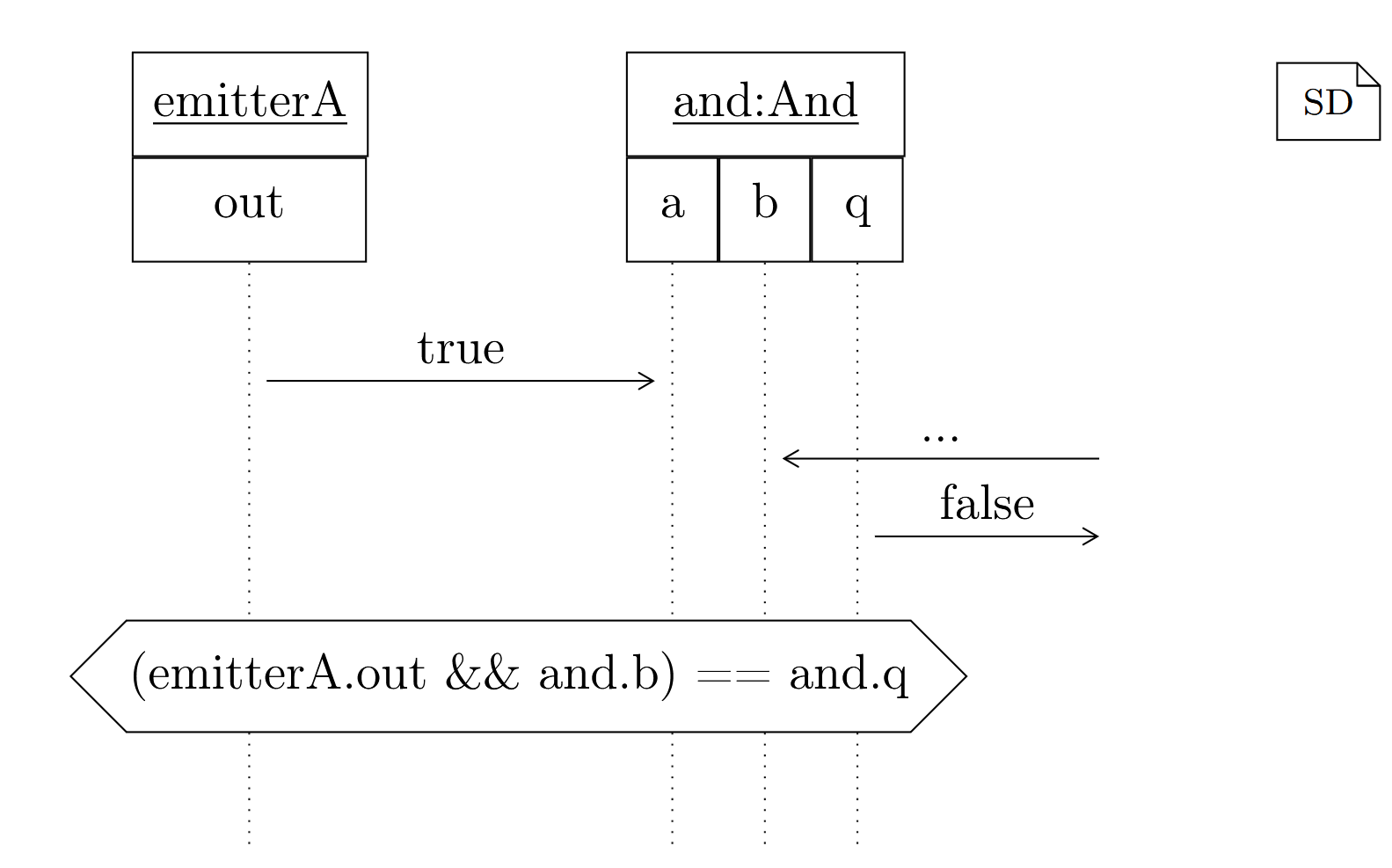

{ width="600"}

sequencediagram SD1 {
  emitterA;
  and:And;

  emitterA.out -> and.a : true;
  -> and.b : ...;
  and.out -> : false;
  assert (emitterA.out && and.b) == and.q;
}

Test

Sequence diagrams have a package and a name like any other model in MontiArc. A sequence diagram starts with the listing of actors included in the sequence. This is a list of names and optionally a type. For tests that stand on their own the type is always required. Next comes a list of interactions that have a source and target port and a message. If the source is omitted, the message is sent by the test coordinator.

A test is considered successful if all interactions with the specified values were observed, and no assertions have failed.

Given the following example. The test inputs true and false to the respective ports and asserts that an outgoing message false is observed. All of this should occur in one tick as specified by <<ticks=1>>.

package a.b;

<<ticks=1>>
complete sequencediagram AndScenario01Test {
  and:And;

  -> and.a : true;
  -> and.b : false;
  and.out -> : false;
}

If a message value is not of interest or is unknown ... can be used. Then only that the interaction occurs is asserted, but not its value.

The last message of a port can always be referenced in expressions. Variables can be created at any point using the var keyword. Like assert statements, var statements are executed directly after the previous interaction has been observed.

package a.b;

complete sequencediagram AndScenario02Test {
  and:And;

  -> and.a : true;
  -> and.b : true;
  and.out -> : ...; // Ignored
  var boolean outFirst = and.out; // outFirst = true

  -> and.a : outFirst; // true
  -> and.b : and.out;  // true
  and.out -> : ...;    // Ignored
  assert and.out;      // assert last and.out == true
}

Using multiple components and different semantics allows the the specification of complex scenarios or requirements.

Embedded

Another possible way to use sequence diagrams is to specify an existing architecture. For that, an existing decomposed MontiArc model has to be specified for which an interaction between the subcomponents can be modeled.

<<montiarc="path/to/And.arc">>
sequencediagram AndSD1 {
  visible notA;
  notB;
  nor:Nor;

  -> notA.a : trigger true ;
  notA.q -> nor.a : false ;
  nor.q -> : ... ;

  assert (notA.a && notB.b) == nor.q;
}

Semantics

We have previously said that C&C sequence diagrams are exemplary. This means the modeled interaction can occur once, multiple times at any frequency, concurrently, or never. Furthermore, a sequence diagram can be an abstraction of the real execution by omitting components and interactions. How a sequence diagram models executions can be controlled with matching stereotypes, which can alter the semantics. We define three different interpretations for sequence diagrams, known from UML sequence diagrams defined by Modeling with UML. They can be applied to the whole model and to individual components, where applying them to the whole model is equal to applying them to each component individually. In the graphical notation, the name can be prefixed with a stereotype to indicate that it should be interpreted correspondingly. In the textual notation, keywords are used for this purpose.

Free

This is the default interpretation and allows any interaction or component to be omitted. The stereotype is «match:free» and the keyword is free or ....

Complete

The opposite of free. No interaction displayed in the timeframe can be omitted, and all interactions that occur must be included in the model. Interactions outside the timeframe, that is, interactions before and after the first and last interaction on a timeline, can still occur and be omitted from the model. The stereotype is «match:complete» and the keyword is complete.

Visible

Similar to complete, but interactions with components not included in the diagram can be omitted. Interactions between components included in the model, i.e., visible components, have to be complete. The stereotype is «match:visible» and the keyword is visible.
