MaUnit

MaUnit is a test framework for MontiArc. There are several benefits to writing test on the same abstraction layer as the model:

• Reuse the same concepts already known from MontiArc
• No need to know the underlying simulation engine

How to Write Tests

In MontiArc, tests are components that verify the behavior of other components. This is achieved by making assertions over the input and output streams of the system to be tested, also called system under test (SUT).

A test component is usually decomposed and consists of three major parts, namely the test fixture, the SUT, and the test oracle. The test fixture (also called the test context) provides inputs to the SUT. The SUT produces outputs based on the provided inputs, which are then evaluated and compared against the expected results by a test oracle.

Test Anatomy

A test in MontiArc is identified by the <<test>> stereotype in front of the component definition. Take a look at the following example:

<<test>>
component AndTest {
  And sut;

  emitterA.out -> sut.a;
  emitterB.out -> sut.b;
  sut.q -> assertEquals.actual;

  AssertEquals<boolean> assertEquals(true);
  Emit<boolean> emitterA(true);
  Emit<boolean> emitterB(true);
}

The component sut implements the logic of a binary AND gate and is the SUT. The emitterA and emitterB are the test fixture, they provide input to the SUT. Here they emit a single message with value true, which is configured via their argument. The assertEquals component then checks the output against the expected output. The example makes use of two library components called Emit and AssertEquals, which are responsible for the setup and assertions, respectively.

Parameterized Tests

MontiArc allows the definition of parameterized tests. This is useful when wanting to define multiple tests while keeping the overall architecture the same. A test component can have parameters for which different values can be provided, each of which results in an individual test execution. The values are provided as a list assigned to a stereo value with the same name as the parameter.

The following example shows a parameterized test component, which creates N different test cases. For convenience, if a parameter stays the same over all tests than the list can be omitted, and a direct value can be assigned.

<<test, p1=[val1, val2, ..., valN], p2=valP2>>
component AndTest(T p1, T p2) { }

Test index	Instantiation
0	AndTest(val1, valP2)
1	AndTest(val2, valP2)
	...
N-1	AndTest(valN, valP2)

Complex Tests

More complex tests can be defined by using other library components that produce or assert streams of messages. The execution length of the test can be set with the ticks stereotype, which defines the number of ticks that the test should run for. Likewise, with simulatedTickLength the simulated time between ticks in nanoseconds can be set.

The following test description targets an implementation of the binary AND gate. The test is parameterized by the input and output streams of the SUT.

TimedSync

import montiarc.maunit.api.AssertEqualsTimed;
import montiarc.maunit.api.EmitTimed;

<<test,
  ticks=3,
  a=[
    Event<Boolean><false, false, Tick, true, Tick, true, Tick>,
    Event<Boolean><false, false, Tick, false, Tick, false, true, Tick>
  ],
  b=[
    Event<Boolean><false, true, Tick, false, Tick, true, Tick>,
    Event<Boolean><false, true, Tick, false, Tick, true, true, Tick>
  ],
  expected=[
    Event<Boolean><false, Tick, false, Tick, true, Tick>,
    Event<Boolean><false, Tick, false, Tick, true, Tick>
]>>
component AndTest(EventStream<Boolean> a,
                  EventStream<Boolean> b,
                  EventStream<Boolean> expected) {

    And sut;

    emitterA.out -> sut.a;
    emitterB.out -> sut.b;
    sut.q -> assertEquals.actual;

    AssertEqualsTimed<Boolean> assertEquals(expected);
    EmitTimed<Boolean> emitterA(a);
    EmitTimed<Boolean> emitterB(b);
}

import montiarc.maunit.api.EmitSync;
import montiarc.maunit.api.AssertEqualsUntimed;

<<test, ticks=[4, 5], a=[
    Sync<false, false, true, true>,
    Sync<false, false, false, false, true>
], b=[
    Sync<false, true, false, true>,
    Sync<false, true, false, true, true>
], expected=[
    Untimed<false, false, false, true>,
    Untimed<false, false, false, false, true>
]>>
component AndTest(SyncStream<boolean> a,
                  SyncStream<boolean> b,
                  UntimedStream<boolean> expected) {
    And sut;

    emitterA.out -> sut.a;
    emitterB.out -> sut.b;
    sut.q -> assertEquals.actual;

    AssertEqualsUntimed<boolean> assertEquals(expected);
    EmitSync<boolean> emitterA(a);
    EmitSync<boolean> emitterB(b);
}

Resulting in the following test cases:

TimedSync

Test index	#Ticks	Input a	Input b	Expected output q
0	3	〈false, false, Tick, true, Tick, true, Tick〉	〈false, true, Tick, false, Tick, true, Tick〉	〈false, Tick, false, Tick, true, Tick〉
1	3	〈false, false, Tick, false, Tick, false, true, Tick〉	〈false, true, Tick, false, Tick, true, true, Tick〉	〈false, Tick, false, Tick, true, Tick〉

Test index	#Ticks	Input a	Input b	Expected output q
0	4	〈false, Tick, false, Tick, true, Tick, true, Tick〉	〈false, Tick, true, Tick, false, Tick, true, Tick〉	〈false, Tick, false, Tick, false, Tick, true, Tick〉
1	5	〈false, Tick, false, Tick, false, Tick, false, Tick, true, Tick〉	〈false, Tick, true, Tick, false, Tick, true, Tick, true, Tick〉	〈false, Tick, false, Tick, false, Tick, false, Tick, true, Tick〉

Library Components

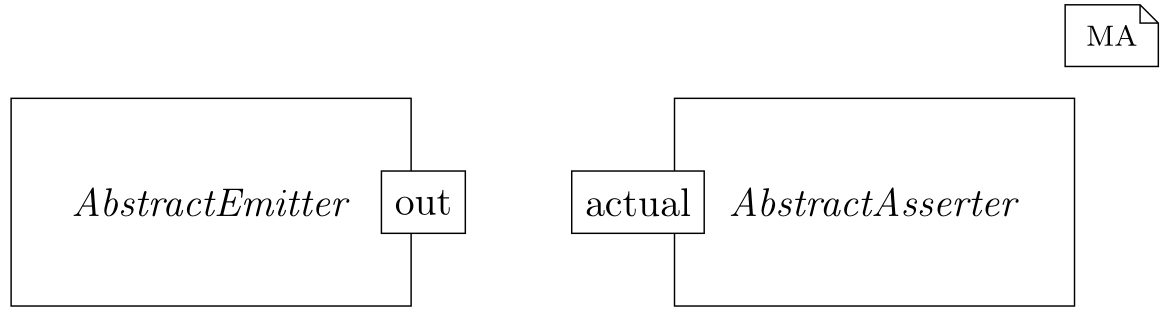

The library consists of two main component categories: assertion components and emitter components. The former provide means to compare input streams with expected values, the latter for generating streams of messages. All assertion components share that they have a single incoming port called actual, while all emitter components have one outgoing port called out. All components lie in the montiarc.maunit.api package.

Asserter

• AssertTrue: The most simple assertion component. It has a single Boolean input port called actual and asserts that all incoming messages are true. I.e., the input stream has to be of the form 〈true, true, true, ...〉. If not, it throws an assertion error.
• AssertFalse Has a single Boolean input port called actual like the AssertTrue component, but expects the incoming messages on the port actual to be false.
• AssertEquals<T>(T expected) A component that can make assertions over objects. The expected value is specified by the parameter expected. This is a generic component with a single input port T actual that asserts all incoming messages are equal to that parameter expected.
• AssertEqualsSync<T>(SyncStream<T> expected) A component with a single input port, of type T called actual, that asserts the stream of incoming messages is equal to expected synchronous stream. It also fails the test if more messages are received than what was expected.
• AssertEqualsUntimed<T>(UntimedStream<T> expected) A component with a single input port of type T called actual, that asserts the stream of incoming messages is equal to expected while ignoring ticks in the stream. It fails the test if more messages are received than what was expected.
• AssertEqualsTimed<T>(EventStream<T> expected) Like the AssertEqualsUntimed, this is a component with a single input port T actual. But, instead of ignoring ticks, they are asserted, too. If more messages arrive in one tick than are declared in the corresponding stream the test fails. Likewise, if fewer messages arrive than were expected, the test also fails. All received messages have to be equal to the expected messages.

Emitter

• Emit<T>(T output) This component will emit a single message of type T with the value of output on the sync port out every tick. Resulting in an infinite output stream of the form 〈output, Tick, output, Tick, output, Tick, ...〉. It can be used to generate a mock message every tick to drive a test for sync or timed components.
• EmitList<T>(UntimedStream<T> output) A timed variant of the Emit component. Instead of a single message, all elements ei of output are emitted in one time slice. The resulting output is an infinite stream of the form 〈e1 , e2 , ..., en , Tick, e1 , e2 , ..., en , Tick, ...〉.
• EmitSync<T>(SyncStream<T> output) A component that will send the elements of output on the sync port out with a tick after each. After all elements have been sent, the output stream is repeated. Consequently, it gives an infinite output stream of the form 〈e1 , Tick, e2 , Tick, ..., en , Tick, e1 , ...〉.
• EmitTimed<T>(EventStream<T> output) Similarly to EmitSync, this component will emit messages on port out. The messages are timed, the sublists are grouped by ticks, and all elements are sent out as individual messages. Likewise, after all elements have been sent, the output stream is repeated. Resulting in a stream of the form 〈e11 , e12 , ..., e1k , Tick, ..., enm , Tick, e11 Tick, ...〉. Of all emit components, this gives the most control over how and when messages are sent.

Controlling How Tests Are Run

If the MontiArc Gradle plugin is used, tests are automatically run during the test task. The task only considers components located in the test source directory that have the <<test>> stereotype. The test task can be run specifically by executing gradle test.

Individual tests can also be run with the gradle test -tests SomeTestComp command, where SomeTest is the name of the test component.
