SpesML v2

SpesML v2 is a modeling language based on the SPES framework currently in development. The SPES methodology defines a rigorous formal semantic applicable on the SysML v2 centered around specifying components through complete communication histories and stream-processing functions . The language shown below is a SysML v2 profile. There are currently two types of specifications supported: black-box through history-oriented specifications and glass-box through state machines.

Exemplary Model: SumUp

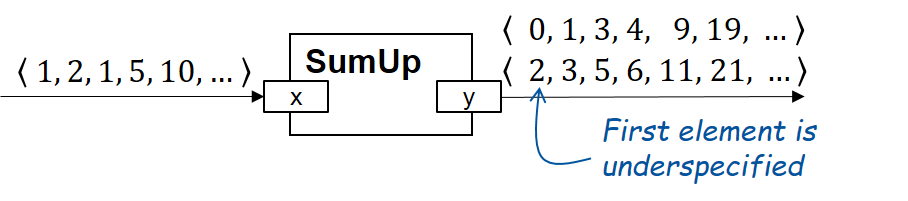

The following model demonstrates a simple SumUp component specified in SpesML v2:

port def Naturals {
  in attribute val: nat;
}

part def SumUp {
  #untimed port x:  Naturals;
  #untimed port y: ~Naturals;

  satisfy requirement {
    assume constraint InfStream {
      x.hasInfiniteLen()
    }

    require constraint IncrementInplace {
      forall nat t:
        y.nth(t+1) == x.nth(t) + y.nth(t)
    }
  }
}

The SpesML v2 leverages underspecification as a core asset for high-level specifications, which can be thoroughly expressed through history-oriented stream-processing specifications. To this end we provide a stream library for stream processing functions which can be applied to streams.
